Castings for the railway network.

Track crossings, coupling components and bogie castings from our engineering division in Assam. Explore the product families, drawing references and published quality documents.

About This Division

A leading Class “A” Foundry, built for scale.

Our engineering division manufactures steel, alloy-steel, SG-iron, Ni-Hard and high-manganese steel castings at Chaygaon, Assam. The division is an RDSO Class “A” foundry with a published installed capacity of 7,200 tonnes per year. Its railway range covers track crossings, coupling assemblies and bogie components.

Chaygaon Industrial Growth Center, Village: Chatabari, P.O.: Birpara, Dist: Kamrup, Assam – 781123

Contact: (+91) 033-40636169, 40645703/04

Rausheena Udyog Ltd. railway engineering foundry

Explore the division

Find the component. Match the drawing.

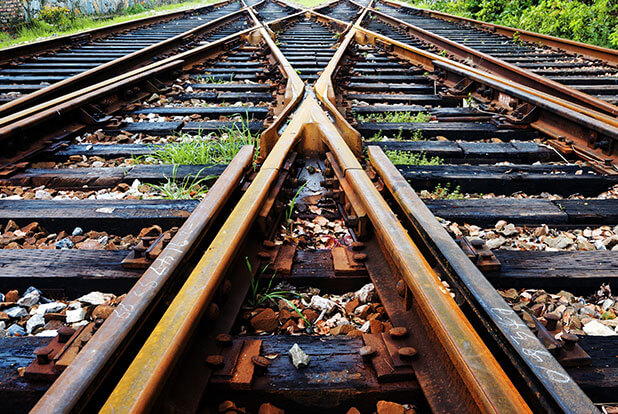

Railway track junction with a crossing — Track crossing application

Railway Track Components — CMS Crossing

Products and drawing references
Component	Drawing / specification
CMS Crossing 1 in 12–60 KG	Drg No. T-4220
CMS Crossing 1 in 12–52 KG	Drg No. T-4734
CMS Crossing 1 in 8.5–60 KG	Drg No. T-4967
CMS Crossing 1 in 8.5–52 KG	Drg No. T-4867
CMS Crossing 1 in 12 – 60 Kg	With integrally cast block at Toe & Heel ends for 60Kg PSC — Drg No. 8682

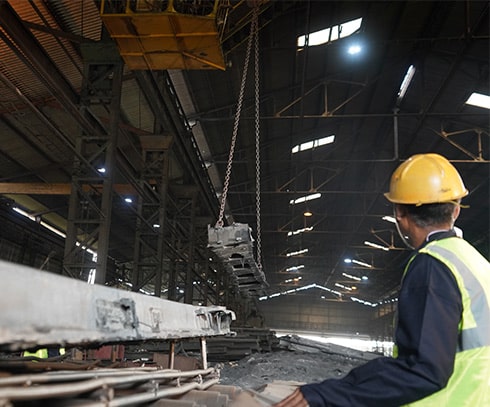

Industrial worker overseeing a suspended casting — Foundry and casting operations

Knuckle · Coupler · Yoke

Products and drawing references
Component	Drawing / specification
Coupler Body with Shank Wear Plate	RDSO SK-62724, Item No. 1 & 10
Knuckle	Drg. No. SK-62724, Item No. 2
Yoke for High Tensile	RDSO SK-62724, Item-3
Lock for High Tensile	SK-62724, Alt-22, Item-8
Knuckle Thrower	SK-62724 Alt.28 (Item 9)
Yoke Pin Support	SK-62724 Alt.28 (Item 12)
Striker Casting (B.G.) with Wear Plate	WA/BD-4460 Alt.9

Wheels and suspension beneath a railway wagon — Bogie and underframe application

Bogie Components & Brake Systems

Products and drawing references
Component	Drawing / specification
Centre Pivot Assembly (Top & Bottom)	WD-85079-S/2
Wedge	SK-77579 Alt.-7
Side Bearer Housing	SK-69594 Alt.35 — Item 4
End Piece & Strut Casting for Brake Beam	WD-89033-S/1 Alt-21
Brake Beam for Casnub 22W(M)	WD-85084-S-1 Alt-05

Images show applications and manufacturing context. For a quotation, share the required drawing revision, material grade, quantity and inspection specification.
